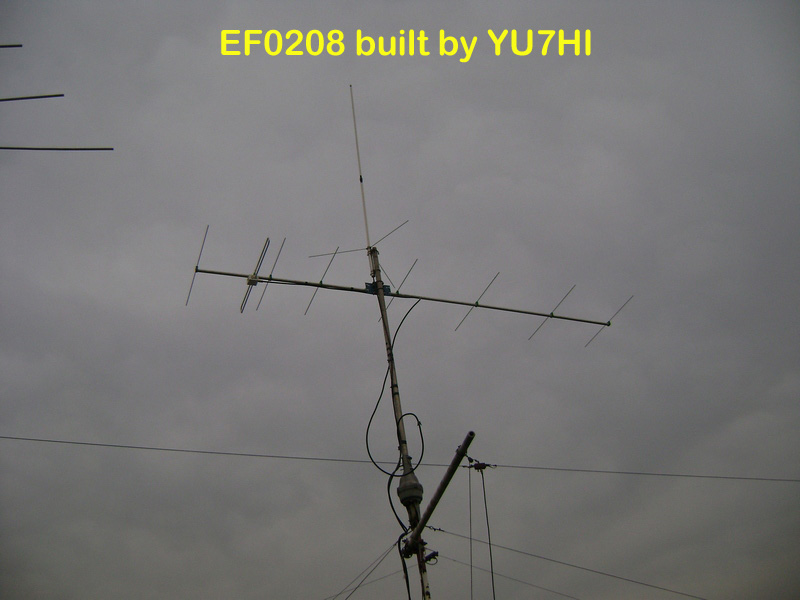

EF0208

FREE SPACE DIMENSIONS
EF0208 REF DE (10mm) D1 D2 D3 D4 D5 D6
POSITION 0 459 590 1012 1686 2436 3205 3900
4 mm 1017 989 962 943 930 910 893 871
5 mm 1016 989 958 938 924 906 884 866
6 mm 1016 989 954 934 920 900 881 859
8 mm 1014 989 948 927 912 892 870 850
10 mm 1010 989 942 920 904 884 860 840



Dimensions of Folded Dipole

This dimension is valid ONLY in case when passive elements are centered with a folded dipole, as it is in case when elements are installed through the boom

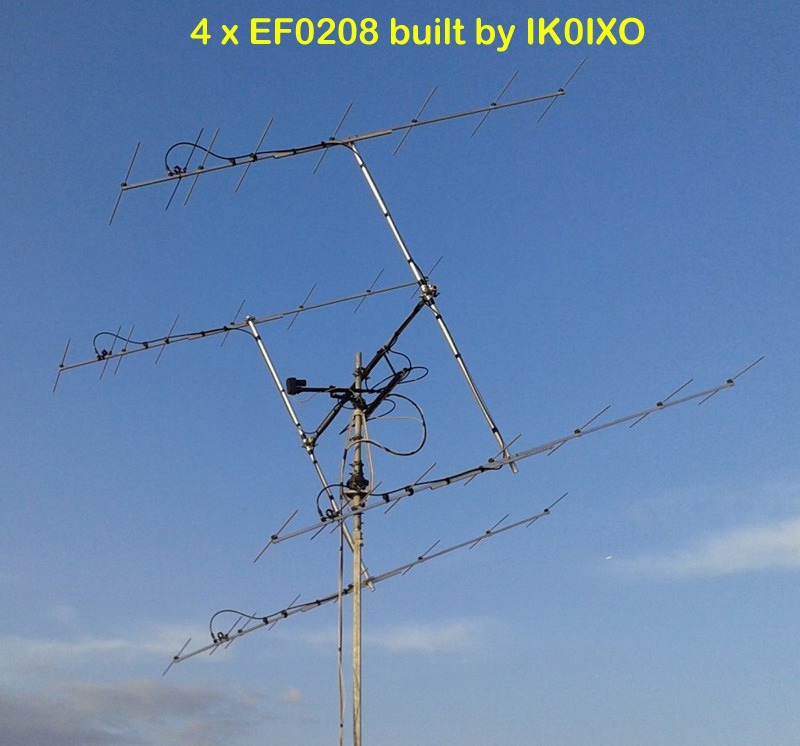

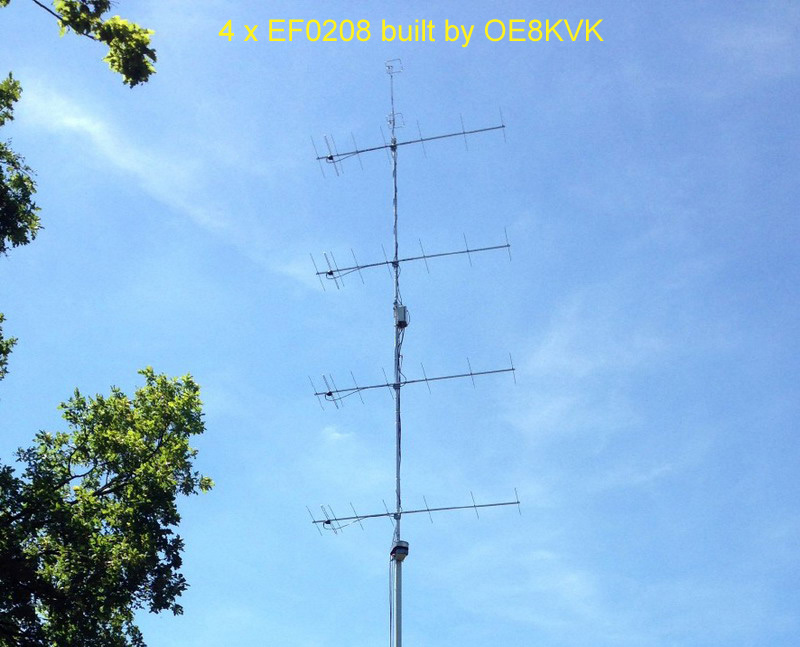

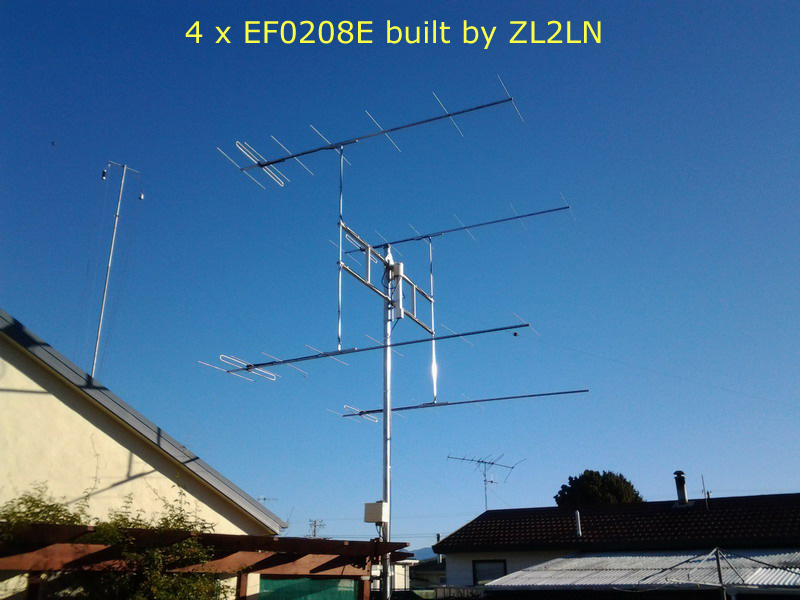

4 YAGI BAY

 4 mm 5 mm 6 mm 8 mm 10 mm
GAIN dBi  19.31 19.34 19.35 19.36 19.37
TA K  242.20 242.20 241.80 242.10 241.80
G/T dB  -4.53 -4.50 -4.48 -4.48 -4.46



SPECIFICATIONS

4 mm 5 mm 6 mm 8 mm 10 mm
GAIN dBi  13.40 13.43 13.44 13.45 13.46
F/B dB  22.26 22.41 22.38 22.14 22.30
TA K  248.10 248.30 248.30 248.30 248.00
G/T dB  -10.55 -10.52 -10.51 -10.50 -10.48
STACKING m

 SH = 3.000                SV = 2.750
